Novox N-VIBE 15 – active loudspeaker 500W

SKU L1080072 Category

Novox N-VIBE 15 – active loudspeaker 500W

The Nvibe series is designed to deliver exceptional audio performance and versatility for intensive audio applications. It features a 1.75″ compression driver, 15″ woofer, two-channel 1,000W amplifier, and a constant directivity True Resistive Waveguide that produces a coherent 100° x 60° coverage for the listening area with up to 129 dB SPL, ensuring distortion-free sound.

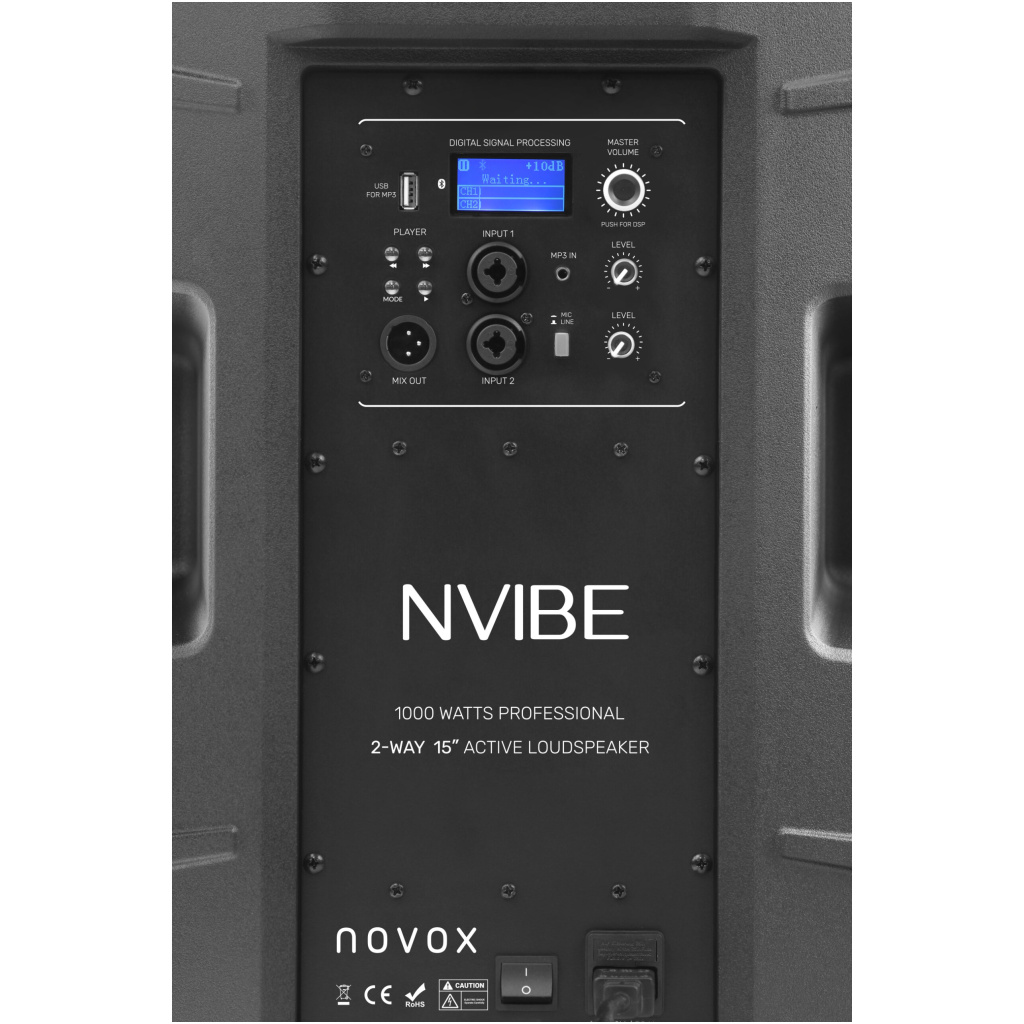

The amp panel comes with a DSP function and an LCD screen for multi-place use, perfectly tuned for each model. The audience will experience absolute clarity and deep, powerful bass response.

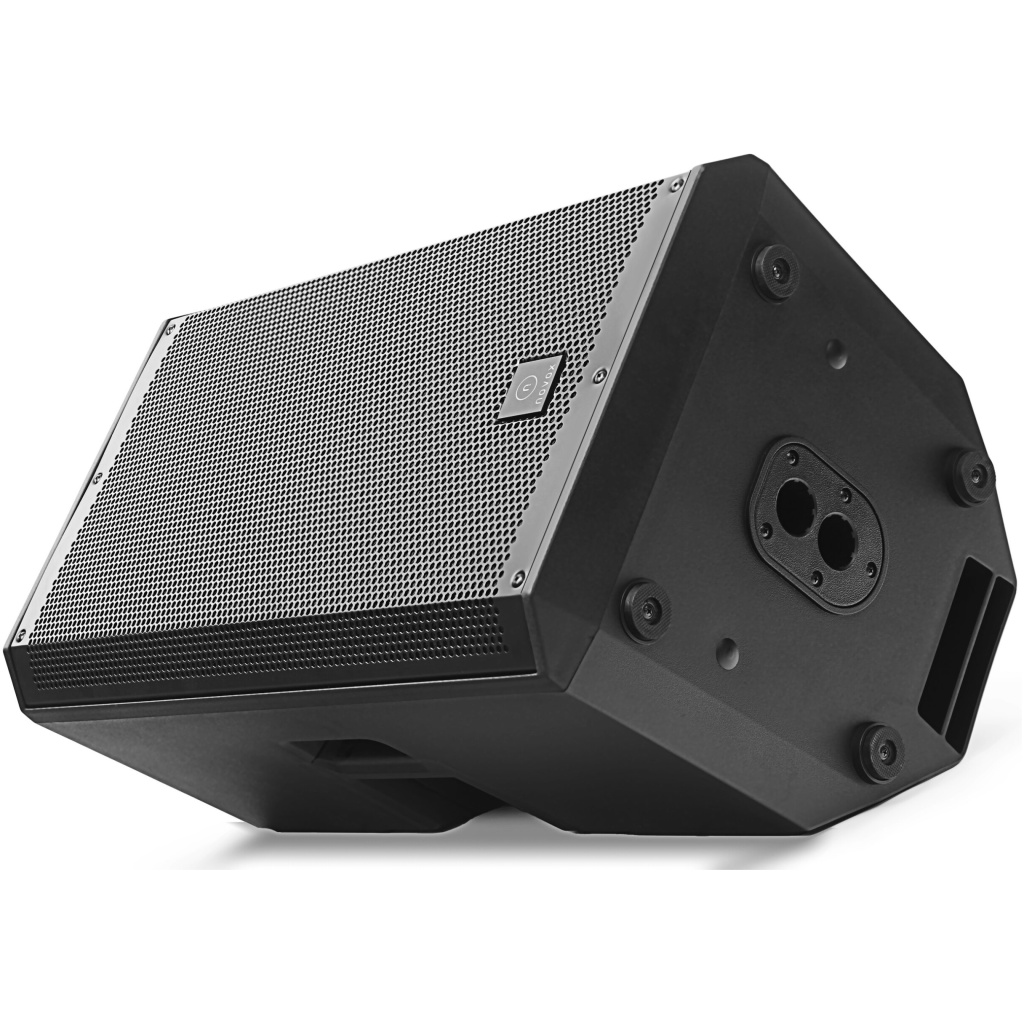

The sleek cabinet is made of a special polypropylene composite material with an Mbrace internal reinforcement, making it easy to carry and secure to install on a pole, flown-, wall-, or truss-mounted setting, using the multiple rigging points available.

Features:

  • Exceptionally high sound pressure level
  • Class-D bi-amplification
  • Linear frequency response
  • Titanium diaphragm compression driver
  • Compact Cabinet design
  • DSP functions with LCD screen
  • Bluetooth connecting and TWS

Technical Specifications:

Acoustical specifications

  • Frequency response: 45 Hz ÷ 20000 Hz
  • Max SPL @ 1m: 129 dB
  • Horizontal coverage angle: 100°
  • Vertical coverage angle: 60°

Transducers

  • Compression driver: 1 x 1.75” v.c
  • Woofer: 15”, 3” v.c
  • Input/Output section
  • Input signal: bal/unbal
  • Input connectors: XLR, Jack
  • Output connectors: XLR
  • Input sensitivity: -10 dBu / 0 dBu

Processor section

  • Crossover frequencies: 1800 Hz
  • Protections: OCP
  • Limiter: Soft Limiter
  • Controls: Music, DJ, Speech

Power section

  • Total power: 1000 W Program
  • High frequencies: 200 W Program
  • Low frequencies: 800 W Program

Size

  • Height: 717 mm / 28.23 in
  • Width: 415 mm / 16.34 in
  • Depth: 410 mm / 16.14 in
  • Weight: 22 kg
